HVI light Conductors

High-voltage-resistance insulated down conductors for maintaining the separation distance from conductive parts. For use up to an equivalent separation distance s ≤ 45 cm (in air) or s ≤ 90 cm (solid material).

HVI light Conductor

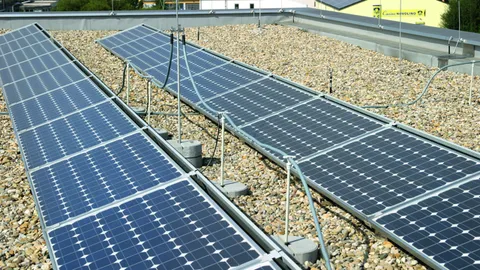

System for maintaining the separation distance, e.g. on flat roofs. The high-voltage-resistant, insulated HVI light Conductor prevents uncontrolled flashover to metal or electric components underneath the roofing.

For use up to an equivalent separation distance s ≤ 45 cm (in air) or s ≤ 90 cm (solid material).

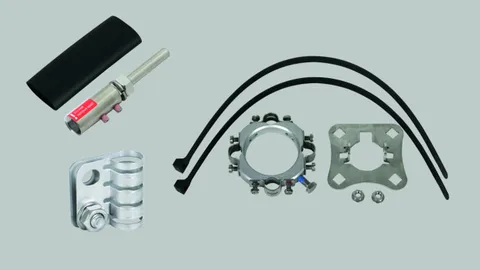

Connection Elements for HVI light Conductors

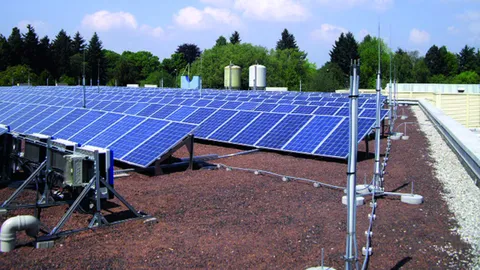

Air-termination Masts for HVI light Conductors on Flat Roofs

Includes connection plate plate for four HVI light Conductors and fixing kit for mounting the conductors on the air-termination mast.
Adjustable to roof inclination up to max. 10°.
Concrete bases (weight 17 kg) and base plates have to be ordered separately.

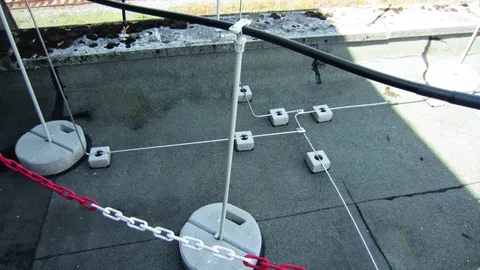

Conductor Holder and Accessories for Installation on Flat Roofs / Metal Roofs

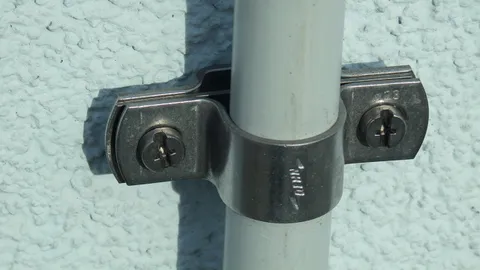

Wall-mounted Conductor Holders

Stripping tool for the HVI light conductor / HVI light plus Conductor / HVI Conductor

Tool for stripping the semi-conductive sheath and the PE insulation of the HVI light Conductor, HVI Conductor (outer diameter 20 mm).
  • The tool consists of a handle and various interchangeable stripping inserts
  • The stripping length of the HVI light Conductor, HVI light plus Conductor, HVI Conductor is adjustable in steps of 0.2 mm (lock points) using the knob in the handle. The dial on the handle shows the length that is set.
OperationPosition the stripping insert at the cut-off end of the conductor.Turn clockwise applying light pressure, the cutting operation/stripping occurs through the tool.The interchangeable stripping insert can be attached without tools via the bayonet coupling.

Stripping tool for the HVI light Conductor / HVI light plus Conductor / HVI Conductor

Tool for stripping the additional grey sheath of the HVI light Conductor and HVI Conductor. DEHNhelix consists of a handle and an exchangeable bracket (depending on the conductor diameter).

Cable shears for HVI Conductors

Cable shears for easily cutting the HVI light Conductor, HVI Conductor (outer diameter 20 / 23 mm), HVI power Conductor (outer diameter 27 mm) and CUI Conductor to length.
The special design of the cable shears also allows precise cutting of stranded conductors, making it easier to attach connection elements.
